Aspect-Slope, Columbia Plateau WA

Oct 17, 2022
Open in Map
Open in Map
Description:

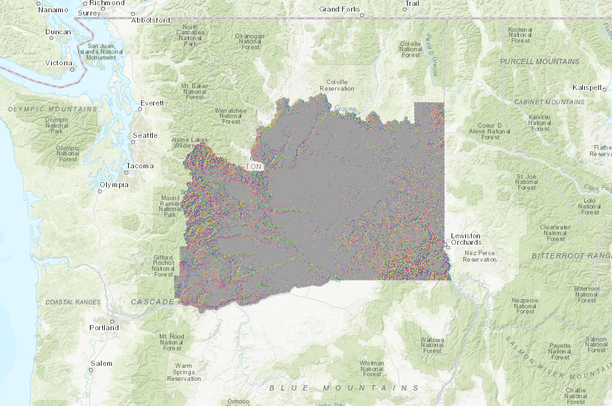

An aspect-slope map simultaneously shows the aspect (direction) and degree (steepness) of slope for a terrain (or other continuous surface). Aspect categories are symbolized using hues (e.g., red, orange, yellow, etc.) and degree of slope classes are mapped with saturation (or brilliance of color) so that the steeper slopes are brighter. The coloring is based on Moellering and Kimerling’s MKS-ASPECT scheme (GIS world 1991). This will create a new output grid with values in the 20s for low slope areas, 30’s for medium slope areas and 40s for high slope areas. The numbers will range from 21-28, 31-38 and 41-48 where the last digit relates to the aspect orientation (with 1 being north, 2 northeast, 3 east, 4 southeast, 5 south, 6 southwest, 7 west, 8 northwest). Numbers less than 20 are essentially flat areas and will be assigned a gray color.

Data Provided By:
Conservation Biology Institute using data provided by LANDFIRE, Earth Resources Observation and Science Center (EROS), U.S. Geological Survey.
Content date:
2020-01-01T00:00:00 - 2020-01-01T00:00:00
Spatial Resolution:
30 (Meter)
Contact Organization:
Conservation Biology Institute (CBI)
Contact Person(s):
  • Moriah Van Voorhis
Use Constraints:
“This dataset is licensed under the Creative Commons Attribution-NonCommercial 3.0 License and is available to the public for non-commercial access and use. Attribution is required for redistribution in any medium or format. CBI makes no warranties either expressed or implied with respect to datasets made available for public distribution.”
Layer:
Layer Type:
Currently Visible Layer:
All Layer Options:
Layers in this dataset are based on combinations of the following options. You may choose from these options to select a specific layer on the map page.
Description:
Spatial Resolution:
Credits:
Citation:
Purpose:
Methods:
References:
Other Information:
Time Period:
Layer Accuracy:
Attribute Accuracy:
FGDC Standard Metadata XML
Click here to see the full FGDC XML file that was created in Data Basin for this layer.
Original Metadata XML
Click here to see the full XML file that was originally uploaded with this layer.
This dataset is visible to everyone
Dataset Type:
Layer Package
Tags:
slope, washington, dem, columbia plateau, aspect
Downloaded by 7 Members
Bookmarked by 2 Groups
Included in 5 Private Maps
Included in 2 Public Galleries
